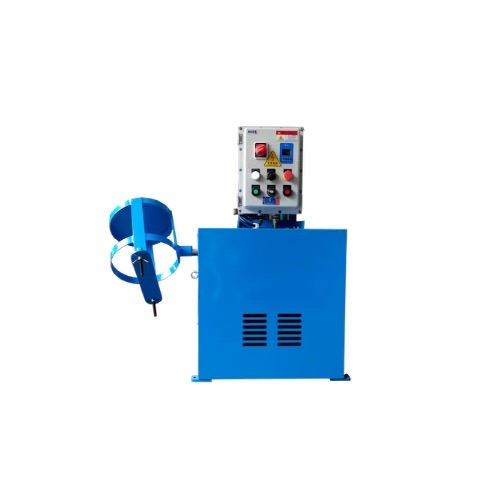

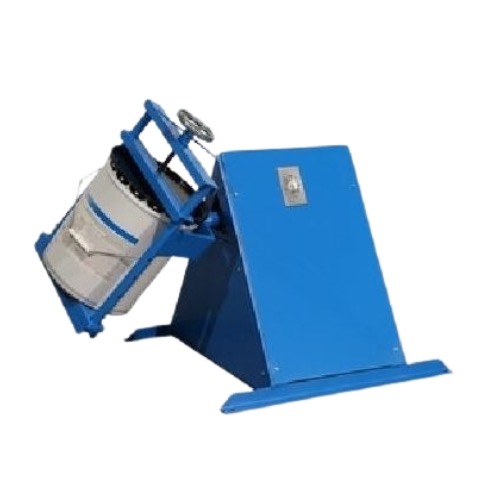

5 Gallon Single Can Mini-Tumbler
Specs for DT-S200 – 200 L Single-Drum Industrial Tumbler:
DrumTumbler manufactures DT-S5 allows you to mix, re-homogenize, and agitate materials within sealed 1–5 gallon cans or pails, all without leaks or exposure.
Key Advantages:
1)Corner-over-Corner Mixing Action — gentle but effective tumbling motion ensures full blending without splashing or agitation stress.
2)True Closed-Container Process — you never need to open the can, minimizing risk, contamination, and cleanup.
3)Restore Settled Contents — perfect for pigment pastes, adhesives, coatings, or any mixture that stratifies during storage.
4)Flexible Utility — also supports tumbling of parts + media (for light deburring or polishing in pail).
5)Secure Rapid Clamping — pails are locked by a hand wheel and locking handle, ensuring tight contact.
6)Compact & Cost-Saving — ideal when materials are already in cans—no need for separate blending tanks or transfers.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | DT-S5 |
| Compatible Containers | Steel or plastic pails / cans |
| Max Container Dimensions | Up to 12.5" (diameter) × 4.5"–16.5" (height) |
| Capacity | 5–20 Liter per can |
| Rotation Speed | 50 RPM (single can) |
| Motor | ½ HP TEFC motor with 1–60 minute timer |
| Electrical | 220V, 50 Hz, Single Phase |
| Full Load Current | 5 Amps |
| Optional Versions | Explosion-proof motor option; alternate voltages available |
Application Scenarios:
1)Shake chip bond adhesive cans prior to dispensing
2)Re-blend catalyst concentrate that tends to settle
3)Re-homogenize color pigment pastes
4)Mix UV ink jars before printing
5)Restore consistency in sealant or coating cans
6)Agitate chemical reagent solutions in closed pails
7)Optional: tumble small parts with media (e.g. fasteners, small cast parts)
Safety, Compliance & Options:
1)Safety Enclosure with Interlock Required – complies with OSHA / CSA / EU machinery safety norms (guard enclosure sold separately).
2)Control System – Built-in timer control 1–60 min; external start/stop control possible with optional control box.
3)Optional Motor Types – TEFC standard; explosion-proof / spark-resistant variants available.
4)Mount & Structure — rugged steel frame, stable base, vibration isolation.
Differentiators vs Other Models:
1)Designed specifically for the 1–5 gallon can/pail segment (compact footprint).
2)Higher rotational speed (50 RPM) compared to many competitor can tumblers at 23 RPM.
3)Enhanced user clamping and fast changeover design to suit frequent small-batch mixing.
4)Option flexibility (motor voltage, control, enclosure) to adapt to global installations.
FAQ:
Q1: Can I use this for solvent-based coatings?
Yes, with the explosion-proof motor option and proper enclosure, it's suitable for flammable chemicals.
Q2: Does it shake or vibrate?
No, it's a tumbler — it rotates steadily; it does not shake or oscillate.
Q3: What container size range is supported?
Up to 12.5" diameter, 4.5" to 16.5" tall pails / cans (5 to 20 liters).
Q4: Is the timer built-in?
Yes, this standard model includes a 1–60 minute timer.
Q5: Is a guard enclosure mandatory?
Yes — to meet OSHA / CSA / EU safety rules, the unit must be installed with an interlock enclosure. However, it depends on your country's safety requirements.
Packing method
Inside with film packaging
Outside with wooden case
