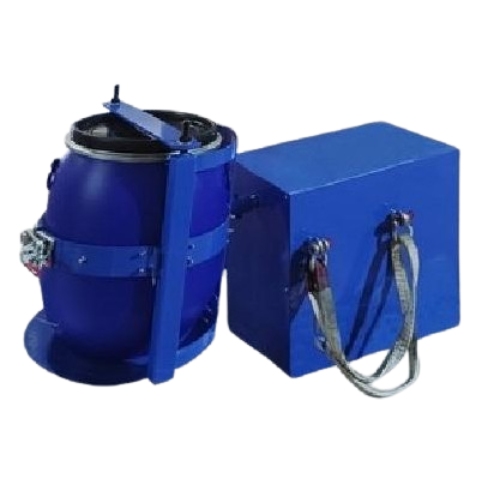

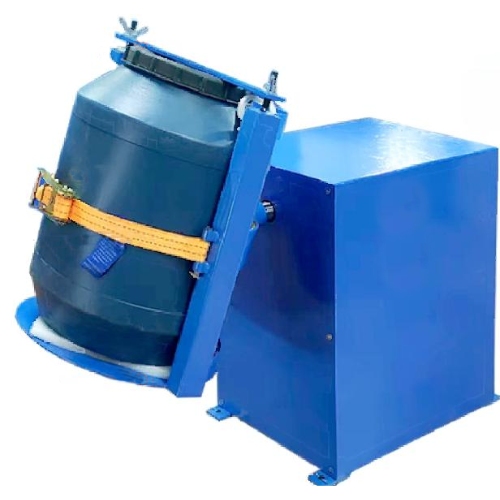

50L Single Pail Drum Tumbler
Specis for Model DT-S50 50L Single-Drum Tumbler:
Safe & Efficient Closed-Drum Mixing for Paint, Chemical, and Adhesive Industries
Product Overview:
The DrumTumbler's DT-S50 is an explosion-proof, heavy-duty drum tumbler designed for mixing
materials directly inside closed 10—15 gallon (40-60L) drums.
Its corner-over-corner tumbling motion ensures complete blending and re-homogenization of settled
ingredients without opening the container — minimizing contamination, vapor release, and cleanup.
Ideal for paint, coating, adhesive, resin, pigment, and chemical manufacturers seeking a safe and
efficient solution for in-container mixing.
Technical Specifications：
| Specification | Details |
|---|---|
| Model | DT-S50 |
| Motor Type | Explosion-proof, single-phase motor |
| Voltage Options | 380V, 50Hz(other voltage option) |
| Rotation Speed | Adjustable from 0 – 38 RPM |
| Drum Capacity | 10–15 gallon (40–60 L) steel, plastic, or fiber drums |
| Mixing Motion | “Corner-over-Corner” tumbling |
| Loading Method | Floor-level upright loading, then tilt-up for mixing |
| Control System | Electric Control Box required (sold separately) |
| Safety Enclosure | Guard enclosure with interlock (sold separately) |
| Compliance | OSHA / CSA / EU safety standards (requires interlock enclosure) |
Key Features:
1)Powerful Corner-over-Corner Mixing – Achieves complete and uniform blending of viscous materials.
2)Explosion-Proof Motor Design – Ensures safe operation in hazardous or flammable environments.
3)Adjustable Speed (0–38 RPM) – Match different viscosity and material requirements.
4)Closed-Drum Operation – Prevents spills, evaporation, and exposure to harmful vapors.
5)Easy Floor-Level Loading – Load drums directly using a drum truck or lifter, no lifting platform needed.
6)Compact Tilt-to-Load Design – Ergonomic and space-saving layout suitable for production floors.
Safety & Handling:
1)Mix directly inside closed drums to reduce spills and worker exposure.
2)Compliant with OSHA, CSA, and EU safety standards.
3)Requires enclosure with safety interlock for compliant operation.
4)Electric Control Box and Guard Enclosure are optional and sold separately.
Optional Accessories：
| Accessory | Description |
|---|---|
| Electric Control Box | Required for Start/Stop and speed control. |
| Guard Enclosure with Interlock | Provides ATEX/CE certificates. |
| Drum Lifting Truck | Enables easy loading at floor level. |
| Explosion-Proof Wiring Kit | Suitable for flammable-area installations. |
| Variable Speed Controller | For precise rotation adjustment. |
Typical Applications:
1)Paints & Coatings – Re-homogenizing settled pigments in epoxy, PU, or acrylic paints.
2)Adhesives & Sealants – Mixing two-component epoxy adhesives and silicone sealants.
3)Inks & Pigments – Blending UV-curable inks or solvent-based pigment dispersions.
4)Resins & Catalysts – Pre-mixing polyester resin, epoxy systems, or catalyst blends.
5)Chemical Blends – Re-suspending fillers, lubricants, or stabilizers before filling.
6)Laboratory & Pilot Batches – Small-scale mixing of viscous formulations under safe conditions.
Packing method:
1)Inside with film packaging
2)Outside with wooden case
