100L Double Pail Drum Tumbler
Specs for DT-D100 – 100 L Double-Drum Industrial Tumbler:
Product Overview:

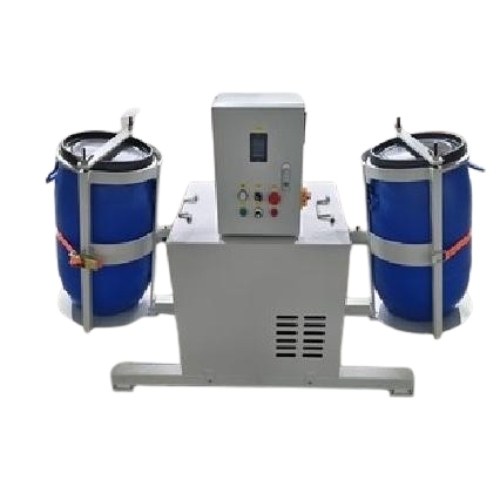

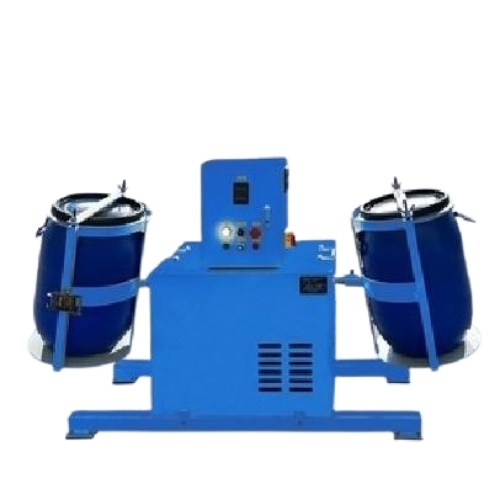

The DrumTumbler manufactures DT-D100, is a high-capacity, explosion-proof dual-drum tumbler designed
for simultaneous mixing of two closed 24–26 gallon (100 L) drums.
Using a corner-over-corner tumbling motion, it thoroughly blends viscous or settled materials inside sealed
drums — eliminating transfer, minimizing contamination, and ensuring uniform consistency.
Ideal for paint, coating, resin, adhesive, pigment, and chemical manufacturers requiring safe, efficient, and
large-batch in-container mixing.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | DT-D100 |
| Drum Capacity | Two drums, 24 – 26 gallon (≈ 90– 115 L) each |
| Mixing Motion | Corner-over-corner tumbling |
| Motor Power | 2 × 1.5 HP (Explosion-proof motors) |
| Voltage Options | 220 V / 380 V, 50–60 Hz, 3-phase |
| Speed Range | Adjustable from 0 – 38 RPM |
| Control System | Electric Control Box required for Start/Stop and speed adjustment (sold separately) |
| Safety System | Guard Enclosure with Safety Interlock (sold separately) |
| Loading Method | Floor-level loading via drum truck or hoist |
| Structure | Heavy-duty carbon steel frame with anti-vibration base |
| Compliance | OSHA / CSA / EU safety standards (requires interlock enclosure) |
Key Features:
1)Dual-Drum Design for High Productivity
Mix two sealed drums simultaneously — perfect for large-batch production or parallel formulations.
2)Explosion-Proof Drive System
Designed for solvent-based paints, adhesives, and flammable chemicals.
3)Adjustable Rotation Speed (0–38RPM)
Optimize mixing intensity for different viscosities and formulations.
4)Closed-Drum Operation
No spills, no vapors, no cross-contamination — ideal for hazardous chemical environments.
5)Corner-Over-Corner Mixing Action
Provides vigorous 3-D blending to re-homogenize settled solids and liquid layers.
6)Heavy-Duty Frame & Smooth Drive System
Ensures stable operation and long service life under continuous industrial use.
Safety & Handling:
1)Mix materials directly inside closed drums to reduce operator exposure and hazards.
2)Meets OSHA / CSA / EU requirements when used with interlocked guard enclosure.
3)Prevents spills and waste associated with open-tank mixers.
4)Designed with ergonomic floor-level loading for safe drum handling.
Optional Accessories:
| Accessory | Description |
|---|---|
| Electric Control Box | Controls Start/Stop and speed adjustment. |
| Guard Enclosure with Interlock | OSHA/CSA/EU-compliant safety protection. |
| Drum Lifting Truck | For safe floor-level loading and positioning. |
| Explosion-Proof Wiring Kit | For hazardous-area installation. |
| Variable Speed Controller | Allows precise speed and torque adjustment. |
Typical Applications:
1）Chip Bonding Adhesives – Shake and homogenize high-viscosity electronic adhesives before dispensing.
2）Catalysts and Curing Agents – Re-blend stored catalysts to ensure stable and uniform activity.
3）PU Sealants and Silicone Glues – Evenly re-mix stored sealant drums for smooth application.
4）UV and Screen Printing Inks – Re-homogenize printing inks for consistent color and viscosity.
5）Paints and Industrial Coatings – Shake sealed pails to restore uniform color and gloss before use.
6）Epoxy Resins – Mix single or two-component epoxy systems to maintain balance and consistency.
7）Solder Mask and Photoimage Inks – Re-disperse fine fillers and prevent settling in precision coatings.
8）Battery Slurries and Conductive Pastes – Agitate viscous slurries for stable viscosity before electrode coating.
9）Pigment Pastes and Color Concentrates – Restore even dispersion and flowability for tinting systems.
10）Pesticide Formulations – Re-mix emulsions and suspensions to ensure uniform active content.
11）Lubricants and Additives – Homogenize thick oil-based materials for consistent blending performance.
Packing method:
1)Inside with film packaging
2)Outside with wooden case
