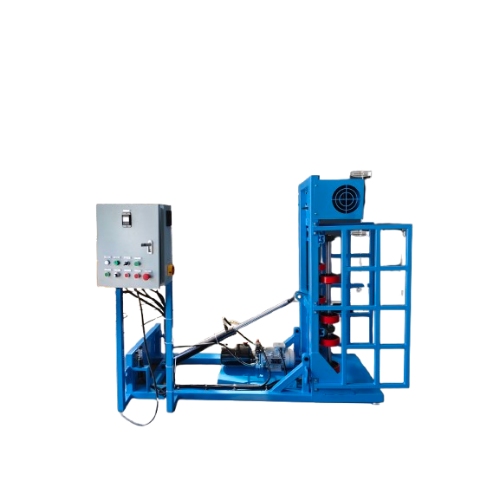

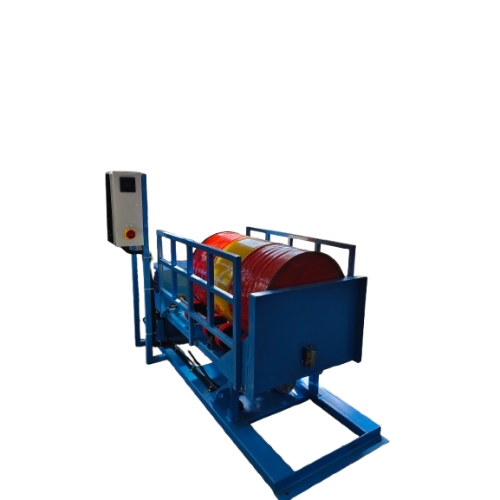

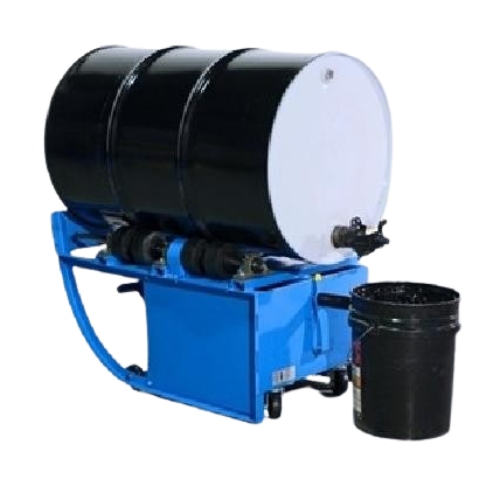

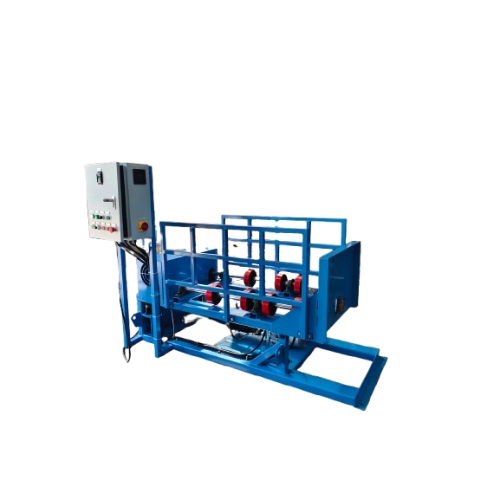

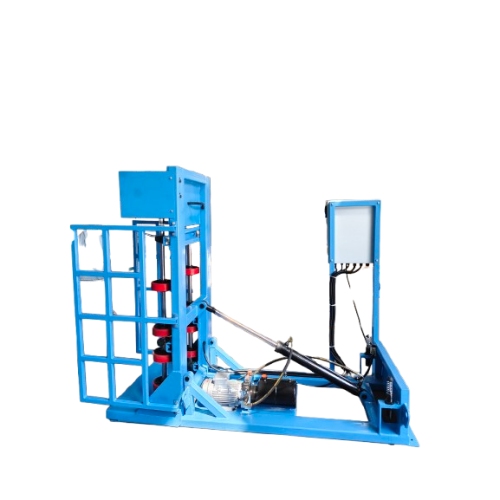

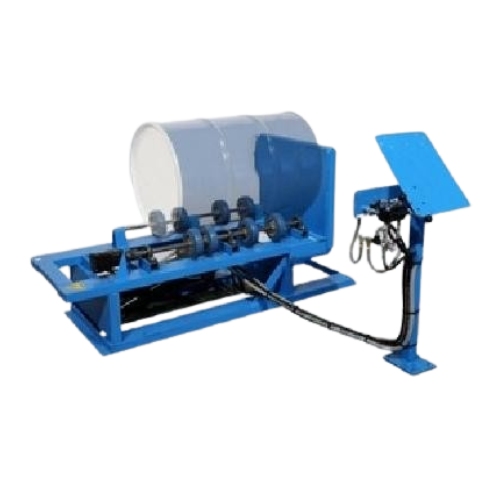

200L Drum Roller Mixer
Specs for 200L Drum Roller Mixer:
Efficient and safe drum mixing solution for 200 L steel and plastic drums
Product Overview：
The Drum Tumbler manufactures DT-G200 drum roller mixer is designed for efficient mixing of liquids, slurries, powders, and granules. It is compatible with 200 liter steel drums and 200 liter L-ring plastic drums, enabling fast, uniform, and safe in-drum mixing without opening the drum lid.
How It Works:
The DT-G200 uses a drum-rolling mixing principle. Contents flow and tumble along the drum wall to achieve gentle yet thorough blending. The full-drum support structure reduces drum wear. Operators mix directly inside sealed containers to avoid leaks, contamination, and exposure.
Key Features:
1.Drum compatibility:
Mixes steel and plastic drums, 200 to 220 L
Works with closed-top, open-top, and L-ring plastic drums
Full-drum support design extends drum service life
2.Safety protection system (optional)
All moving parts enclosed in a guarded housing
Safety interlock switch and safety relay circuit
Door-open stop function protects the operator
Aligns with OSHA, CSA, and EU CE safety requirements
3.Pneumatic tilting mechanism (optional)
One-touch pneumatic tilting replaces manual tilting
Reduces operator strain and avoids drum damage
Suitable for flammable or hazardous materials
4.Quick loading and unloading
Low-profile loading for drum truck or hoist
Less manual handling and higher efficiency
Technical Specifications：
| Item | Specification |
|---|---|
| Model | DT-G200 |
| Power Supply | 380 V, 50 Hz, Single Phase |
| Drum Capacity | 200 to 220 L |
| Compatible Drum Types | Steel drum, L-ring plastic drum |
| Drum Diameter Range | 15 to 66 cm (6 to 26 in) |
| Drum Length | Up to 102 cm (40 in) |
| Control System | External electric control box required (sold separately) |
| Speed Adjustment | Variable drum rotation speed supported |
| Tilting System | Hydraulic or pneumatic drive |
| Maximum Working Temperature | 130 °F (54 °C) |
Operating Instructions：
Load the drum upright with a drum truck or below-hook hoist onto the low platform.
Activate the hydraulic or pneumatic tilting system to move the drum to the horizontal mixing position.
Start the drum rotation to begin mixing.
After the preset mixing time, the system stops and the drum can be unloaded.
Typical Applications：
Paints and coatings - uniform dispersion inside sealed drums
Adhesives and sealants - mix high-viscosity products without exposure
Inks and pigments - re-homogenize settled materials
Chemical additives - blend stabilizers and modifiers in bulk drums
Electronic materials and catalysts - uniform slurries and powder catalysts
Food and flavor bases - blend seasonings and viscous pastes
Pharmaceuticals and laboratory batches - controlled, closed-drum mixing

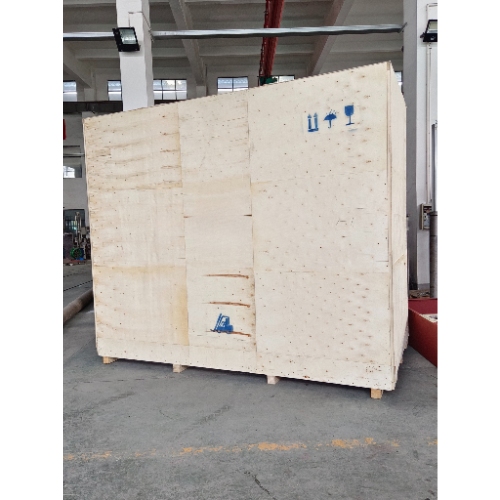

Packing method:
1)Inside with film packaging
2)Outside with wooden case
